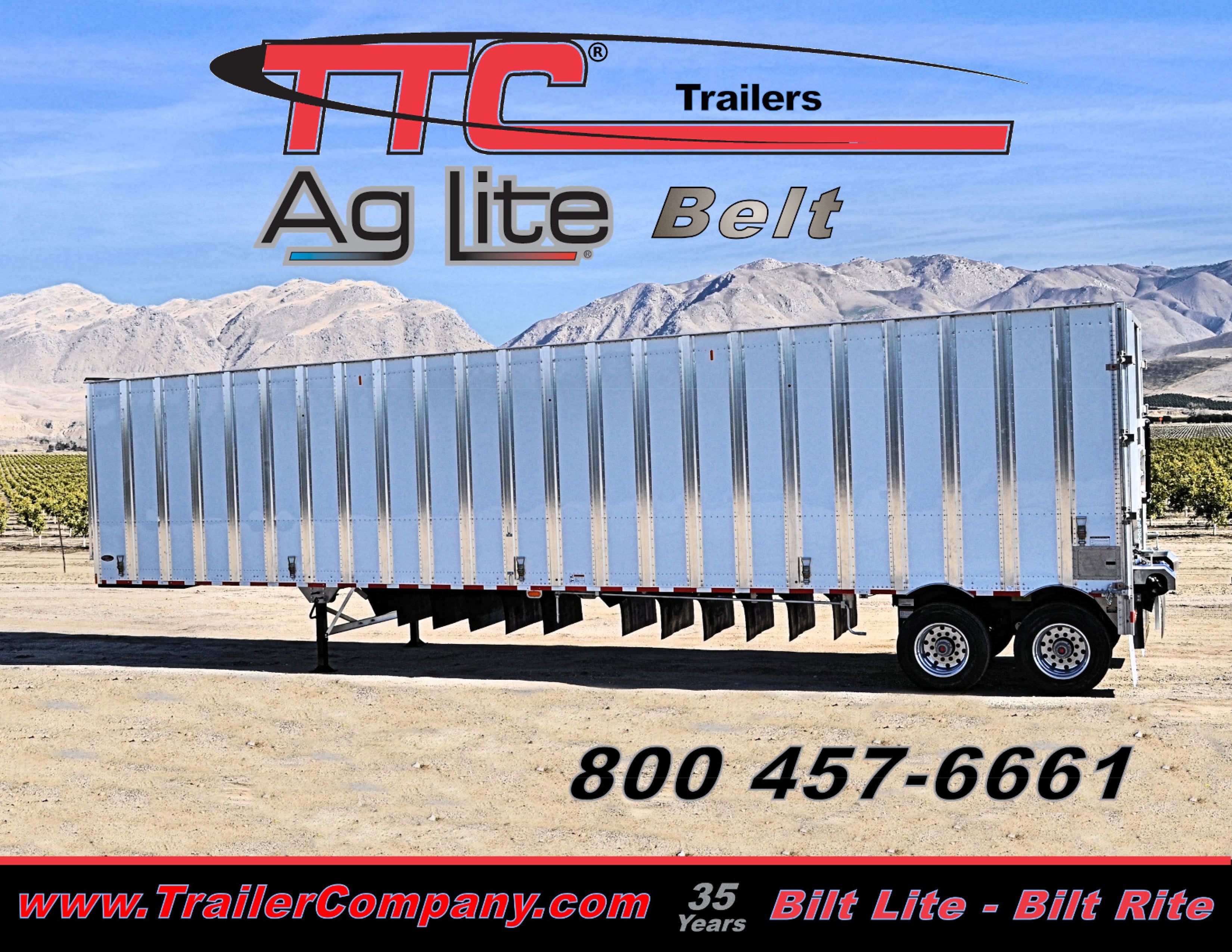

TTC Belt Trailers

---

We offer you a Belt Trailer for the 21st century. Developed with the idea of providing the transportation industry with an uncomplicated and profit-oriented vehicle. It is a lite weight design, which boasts the latest technology and best components, blended with plain old-fashioned quality workmanship.

Standard Features

• 36" & 48" Belt Widths
• 2 Chain High Tensile 88XH
• Aluminum Cross Bars
• UHMW Belly Pan
• Swing Rear Door w/Guillotine
• Grote™ Sealed Wiring Harness
• Pre-Painted White Side Panels
• LED Lights
• Back Up Lights
• Roll-Over Tarp
• Intraxx® Air Ride Suspension
• "22.5" Aluminum Wheels
• "22.5" LP Radial Tires
• Front Ladder
• Rear Step
• Front Air Gauge

Sheet & Post Side

• Variable Aluminum Thickness - .080-.125"
• Sheet Finish PPW or Mill Aluminum
• TTC Aerodynamic Aluminum Side Posts
• Posts on 24" Centers
• 1/4" Riveting on 2" and 4" Centers

Corrosion Resistant Alloys

• Heavy Duty Aluminum Top and Bottom Rails
• 5" Aluminum Members on 24" Centers
• Stainless Steel Rear Face
• Stainless Hinges & Latches
• High Tensile Steel used throughout

Optional Packages

• .063", .080", .125" Side Sheets
• HYD top Hinge Door w/ HYD Guilotine Center Door
• Electric Tarp
• Top Open Door w/Hyd Guillotine Center Door
• High Temperature Liner Packages
• Custom Lighting
• Tire packages
• Polished Stainless Steel Nose Sheets
• Shurco Shur-Lok® Tarp System
• Wet Kit Installation & Repair
• Additional Air Scale

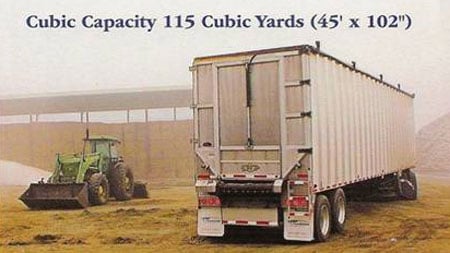

CAPACITY: 115 CUBIC YARDS (45'L X 102"W X 13'6"H)

CAPACITY: 72 CUBIC YARDS (43'L X 102"W X 10'6"H)
