General
Available Dimensions
45’ to 53' length, 102” width, 12' to 13’6” height
Capacity
116 to 137 Cubic yards
Body Structure

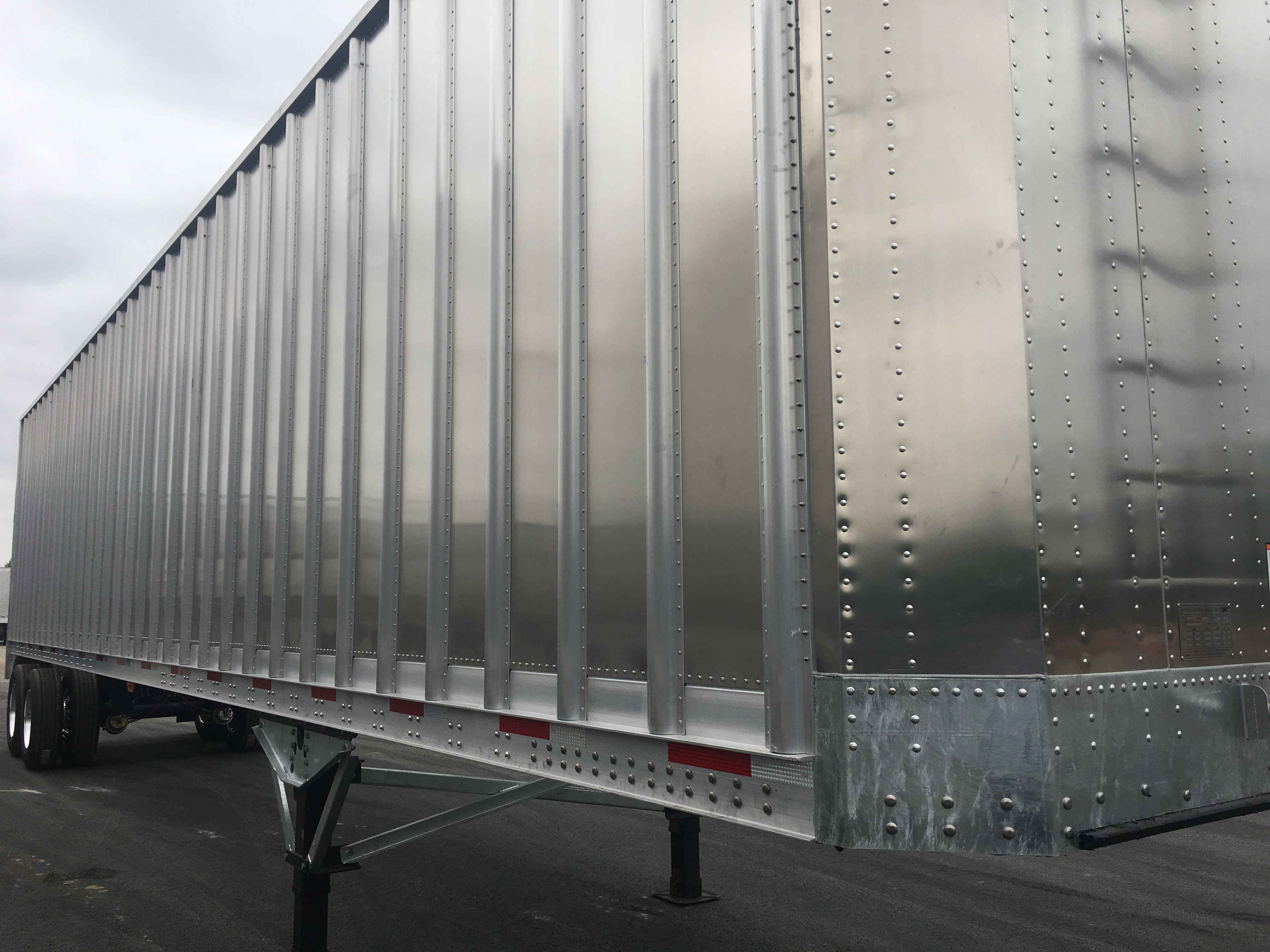

Side Panel
High strength aluminum plate
Side Post
Extruded Aluminum hat-section post
Bottom Side Rail
Heavy duty extruded aluminum rail
Top Side Rail
Heavy duty extruded aluminum rail

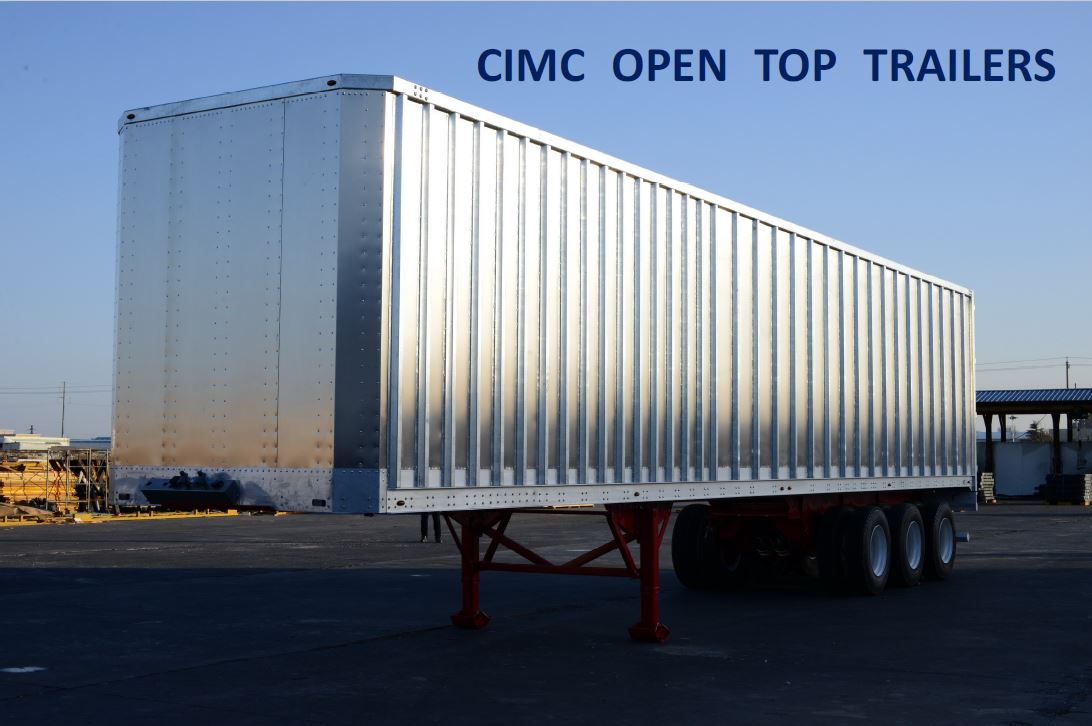

Open Top
Yes
Roof Bows
Galvanized steel square tube reinforcement.
Floor Style
Floor Options Available per Trailer Application
Nose Panel
High strength aluminum plate full height as panel and liner.
Nose Frame
Galvanized Steel frame with hat-section posts inside produces strong structure.
Rear Frame
The sturdy rear frame is designed and fabricated of formed steel. Door opening protection system is installed for swing door and easy to operate. Galvanized finish.

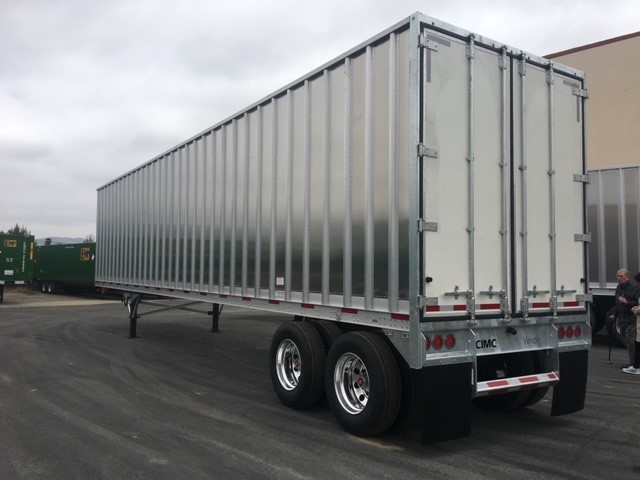

Rear Door Style
Swing door
Rear Doors
Galvanized Steel composite panel. One hot dipped galvanized lock rod and five heavy duty extruded aluminum hinges per door are standard. Torx bolts andLock-bolts for anti-theft and strength.
Wiring
Phillips moisture resistant and long life harness, 7-Way with spit pins.
Lights
Truck-Lite LED lights.
Ladder
Alum pipe ladder located on nose
Underfarme & Suspension
Upper Coupler
Full-width high yield steel with AAR Kingpin 36 setting
Crossmembers
4" deep high tensile steel 80ksi yield I-beams.
Landing Gear
Jost Heavy duty Two speeds support legs. RS crank handle, AAR rated. Hot dipped galvanized K-braces & skirt plates with formed surface & bolt-on pads for additional strength.
Rear Bumper
D.O.T. approved hot dipped galvanized rear bumper. The welded horizontal beam features a pre-punched anti-skid surface and recessed area for conspicuity tape, bolted on installed.
Suspension
Spring Ride or Air Ride
Wheels
Aluminum or Steel
Tires
Radial Tires
Axles
22,500 lbs. capacity, Tandem Axle or Tri Axle
Brakes
16.5”x7” brakes
ABS System
2S-1M ABS. Non-swivel gladhands, mounted on RS nose
